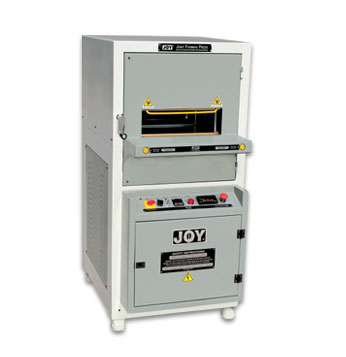

Joint Forming Press

View the video of this product:

Pressing of cased-in books and simultaneous burning-in of the JOINTS for forming perfect hinge and permanent shape with the help of temperature-controlled pressure blades (Joint Forming Bars) for Flat or Rounded Spine of Book-Blocks.

These blades are spring loaded for adjusting to different depth of joints automatically and hydraulic pressure can be set from 100-300/400kgs to achieve the desired results. The bars (Joint Formers) are supplied for Flat and Rounded Spine Book-backs respectively.

Temperature of the Joint Formers is set through Digital Temperature Controller (PID) to suit properties of Glue (Adhesive), Binding material and operating speed. The PLC (Programmable Logic Controller) enables choice of single or multiple stroke/s for accurate control of burning-in the Joints and consistent results. Counter on PLC indicates number of books processed at the end of each cycle.

The system automatically releases the book on completion of the set timing cycle. Back-gauge (setting handle mounted on the front panel) is provided for faster make-ready / production; Light Guide indicates the Joint Forming position and also reduces the make-ready time. Specially designed operator Safety Device in addition to Emergency Switch incorporated.

Provision for Joint Forming of foam padded cases available.

PLC based control panel for optimum reliability and simplified diagnostics. Press equipped with Castors for maximum space saving / utilisation.

Technical Specifications
Description
Unit
JFP 4141
JFP 4848
JFP 6550
Book Block Size
mm
410x410
480x480
650x500
Book Spine (Min-Max)
mm
10 - 110
10 - 110
10 - 110
Book Height (Min-Max)
mm
150 - 410
150 - 480
200 - 500
System Clamp Pressure (Adjustable)
kgs
2500
4000
5000
Joint Bar Pressure (Adjustable)
kgs
100 - 300
100 - 400
100 - 400
Electrical Load / Motor
kw / HP
1.5 / 2
1.5 / 2
2.25 / 3
Electrical Supply
380 / 415V AC 50 Hz 3Ph
Overall Dimension (WxDxH)
ltrs
35
35
35
Hydraulic Oil Capacity
cms
70x105x140
88x120x135
94x140x140
Net Weight (Approx.)
kgs
450
500
650
