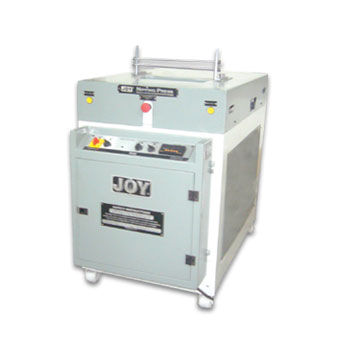

Nipping Press

View the video of this product:

A process of reducing/knocking out the SWELL in the spine of thread-sewn Book-Blocks or gathered folded-forms (signatures) being prepared for Hard-Case or Soft Cover Perfect Binding. Ensures the Book-Blocks are rectangular in shape and free from extreme gradients in the folded/sewn area for quality and enhanced life of the BOOK.

PLC based Control Panel for optimum reliability and simplified diagnostics. Other operator friendly features are: Selection of Manual or Semi-auto mode; Counter for number of Book-blocks processed; Dedicated switches for Clamping and Nipping functions in Manual Mode. Emergency Switch & Recycle Push Buttons are conveniently located on the Top Cover.

Emergency Switch aborts the cycle and resets the machine to starting position. For operator’s safety: both the Push Buttons are required to be pressed simultaneously for initiating the cycle; an intricate Safety Device (sensor based) is incorporated as additional protection in case of malfunction of Recycle Switches or the operator’s hands are in the way of the clamping area. For uninterrupted production, Support Device is provided to ensure the book-blocks are held upright and are not allowed to sag to avoid triggering of Sensors during processing.

The high Speed blower/exhaust fan ensures the ambient temperature in the Power Pack Area is maintained. The latest Hydraulic Technology & Controls make it possible to process 700/800 books (single bookblock upto 30mm spine thickness) per hour. Castors provided for maximum space utilisation & mobility.

Power saving feature is incorporated. The motor switches off automatically after a pre-set delay time provided the Recycle Switches are not activated within the set time. Nipping results are best achieved if the signatures (soon after folding / gathering) are pressed in the ‘JOY’ Bundling Press.

Technical Specifications
Description
Unit
NP 33
Book Width
mm
330
Book Spine (Min-Max)
mm
20 - 110
System Clamp Pressure
kgs
4000
Nipping Pressure (Adjustable upto)
kgs
3000
Electrical Load/Motor
kw/HP
2.25 / 3
Electrical Supply
380/415V AC 50Hz 3Ph
Hydraulic Oil Capacity
ltrs
35
Overall Dimension (WxDxH)
cms
65x119x97
Net Weight (Approx.)
kgs
550
